A-Strut

A-Strut Supports

Electrical Conduit and Refrigeration Lines


Plumbing and Mechanical Piping


  • A-Series supports are manufactured as an extruded aluminum base with integrated 1 5/8” shallow strut available in lengths from 6 inches up to 120 inches.
  • Made in the USA
  • 100% recyclable material
  • Simple time saving installation
  • Extruded aluminum design
  • Pre-cut 6” up to 4’
  • Solid flat base with rolled edges
  • Integrated 1 5/8” Strut
  • Accepts industry standard accessories
  • Single/multiple piping runs
  • Equipment supports
  • Load factor of 5 PSI
  • Available with adhered isolation pad
  • Limited Lifetime Warranty
  • Patent Pending

Learn More
Big Roller

Big Roller Supports

Big Roller Pipe Support for all piping applications


Plumbing and Mechanical Piping


  • Made in the USA
  • Ships Flat and assembled
  • Adjustable
  • Spacers to prevent lateral movement
  • 24” long bases to prevent tipping
  • Heavy Duty Galvanized pipe support frame
  • Rollers allow for Thermal Expansion
  • Single/multiple piping runs
  • Available with Heavy Duty Walk Pad
  • Limited Lifetime Warranty

Learn More

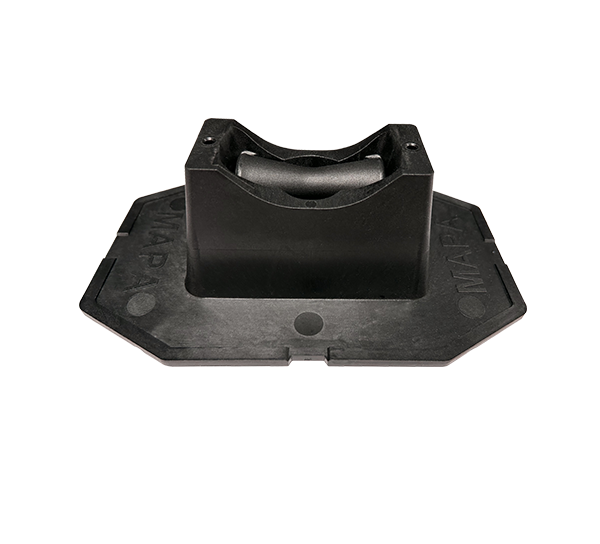

LP1 PACKAGE

Roller Supports

Gas & Hydronic Applications


Plumbing and Mechanical Piping


  • Models for Pipes Sizes - ½” through 10” IPS
  • All Stainless-Steel Hardware.
  • UV Protected Nylon or Stainless-Steel Base
  • Vertically Adjustable ranges from 3”-18”; Fixed height models available.
  • UV Protected SBR Rubber Roller with nylon bushing assembly and stainless-steel shaft and hardware
  • Free Standing or Structurally Attached
  • Designed and manufactured in compliance with the International Fuel Gas Code, MSS SP-58-2002, MSS SP-69-2002 and MSS SP-127-2001where applicable for structural support systems.

Learn More
Roller Support

Strut/Bridging Supports

Single/Multiple Conduit & Refrigeration Lines


  • All Stainless-Steel Hardware.
  • Free Standing or Structurally Attached.
  • Available with integrated 1/8” isolation pad or ½” HD Walk Pad.
  • UV Protected Nylon or Stainless-Steel Base.
  • 1-5/8” Square or Shallow Aluminum Strut depending upon series.
  • Vertically Adjustable ranges from 4”-18”; Fixed height models available.
  • Designed and manufactured in compliance with the International Fuel Gas Code, MSS SP-58-2002, MSS SP-69-2002 and MSS SP-127-2001 where applicable for structural support systems.

Learn More
Single Post Supports

Single Post Supports

Condensate and Light Duty Applications


  • Models for Pipes Sizes – 1/4” through 2” Steel, Copper or PVC.
  • Stainless-Steel ATR with Nylon SNS Clamp
  • UV Protected Nylon or Stainless-Steel Base.
  • Available with integrated 1/8” or ½” HD Walk Pad
  • Vertically Adjustable ranges from 4”- 20”; 4” Fixed height model available with MT-1V.
  • Free Standing or Structurally Attached.
  • Designed and manufactured in compliance with the International Fuel Gas Code, MSS SP-58-2002, MSS SP-69-2002 and MSS SP-127-2001 where applicable for structural support systems.
  • MS-1 Series-Patent # 6,536,717

Learn More
support

Rooftop Hydrants

Sanitary & Auto-Drain


  • Provides Water to rooftops.
  • The Stainless-Steel Shroud or optional Deck Cap permits a positive, weather tight installation.
  • 1" bronze valve within a fully insulated stainless steel shroud.
  • Supply connections are made inside the conditioned area below the roofline.

Learn More
Structurally Attached Supports

Structurally Attached Supports

Utilized in areas where seismic or high wind zones


  • Secures products to rooftop

Learn More
Electric Pedestal

Rooftop Electrical Pedestals


  • Provides local disconnect of electrical service to roof mounted equipment
  • Rainproof Pedestals

Learn More

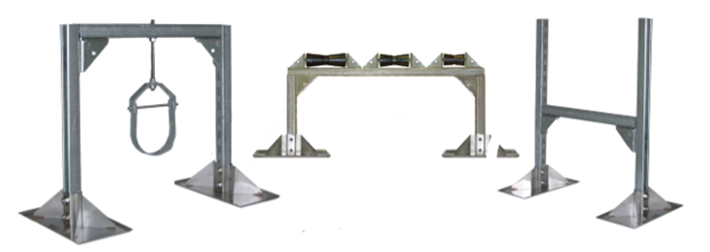

Master Base Support

Master Base Supports


  • All Stainless-Steel Hardware.
  • Available with ½” HD Walk Pad.
  • Steel hardware.
  • Free Standing or Structurally Attached.
  • Designed and manufactured in compliance with the International Fuel Gas Code, MSS SP-58-2002, MSS SP-69-2002 and MSS SP-127-2001where applicable for structural support systems.

Learn More
